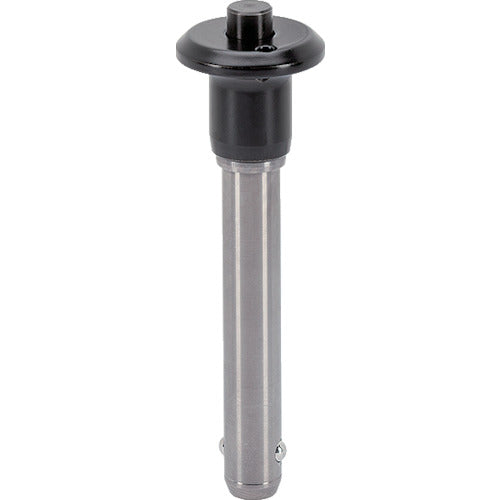

Ball Lock Pins, Self-Locking, with Button Handle 22340.0225 HALDER Discount 2025 Unisex

【Features】
Useful for quickly fixing, locking, replacing, and positioning parts and processed products.
Ideal for areas that are frequently attached and detached.
It has corrosion resistance.
Compact and easy-to-handle mushroom-shaped grip (black).
Equipped with a mounting hole for the holding cable (EH22408.Sold separately).
Press the button to unlock the ball, and release it to lock it.

【Use】
For locking adjustment mechanisms, fastening detachable parts, fixing movable parts, and as a substitute for screws and fasteners.
Quickly fix, lock, replace, and position parts and processed products in locations where they are frequently attached and detached.

【Specification】
Shear strength (kN): 21
d1: 6
d2: 7.0
d3: 11.3
l1: 25
l2: 7.0
l3: 20.7
l4: 17.6
l5: 14.6
Mounting hole H11 (mm): 6
d4:20

【Specification2】
Self-locking function
Hole tolerance is H11
Operating temperature range: -30℃~150℃
With mushroom-shaped grip
With lock release function

【Material/Finish】
Pin: Stainless steel 1.4305 (equivalent to SUS303)
Grip: Aluminum (equivalent to RAL9005)
Spring: Stainless steel
Push button: Stainless steel

【Set contents/accessories】
－
