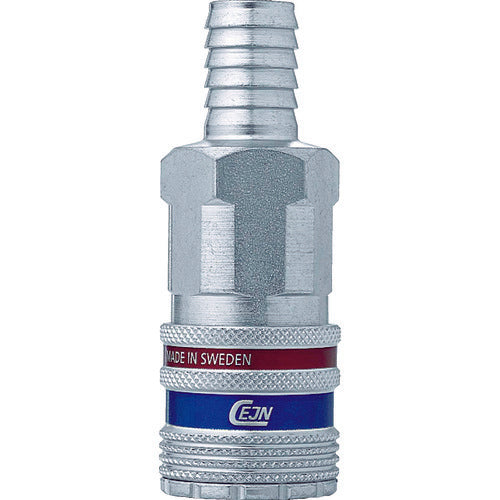

Coupling 310 eSafe Series 10-310-2205 CEJN Perfect Sale Online

Original price was: $18.60.Current price is: $9.00.

Compare
Add to wishlist
SKU: dum1r3a 100% Secure Payment Easy Returns & Replacement Free Shipping On Orders Over $50.

Description

【Features】
Residual pressure removal function (purge function) prevents accidents caused by hose reaction during separation and allows safe removal.
Large flow rate and low pressure loss design that contributes to energy savings and work efficiency.
Easy operation that allows residual pressure to be automatically removed by just one touch when connecting and by pulling the sleeve when disconnecting.

【Use】
Pneumatic tools, pneumatic equipment, factory air piping

【Specification】
Fluid used: Air
Maximum working pressure (MPa): 1.6
Mating side mounting size: G1/2 male thread
Nominal diameter: 5.3mm
Minimum bursting pressure: 14MPa

【Specification2】
Operating temperature: -20 to 100℃
Air flow rate: 950L/min (measured value at inlet pressure 0.6MPa, pressure loss 0.05MPa)
With residual pressure removal function

【Material/Finish】
Body: Steel
Seal rubber: Nitrile rubber (NBR)

【Set contents/accessories】
－

【caution】
Can be connected to ISO 6150 B, A-A 59439, and 5.3mm standards including Series 310.
