MSE PRO Electrolyte Diffusion Chamber for Lithium Ion Battery Research Discount In China

Original price was: $5,807.95.Current price is: $99.00.

SKU: uog7pgy 100% Secure Payment Easy Returns & Replacement Free Shipping On Orders Over $50.

Description

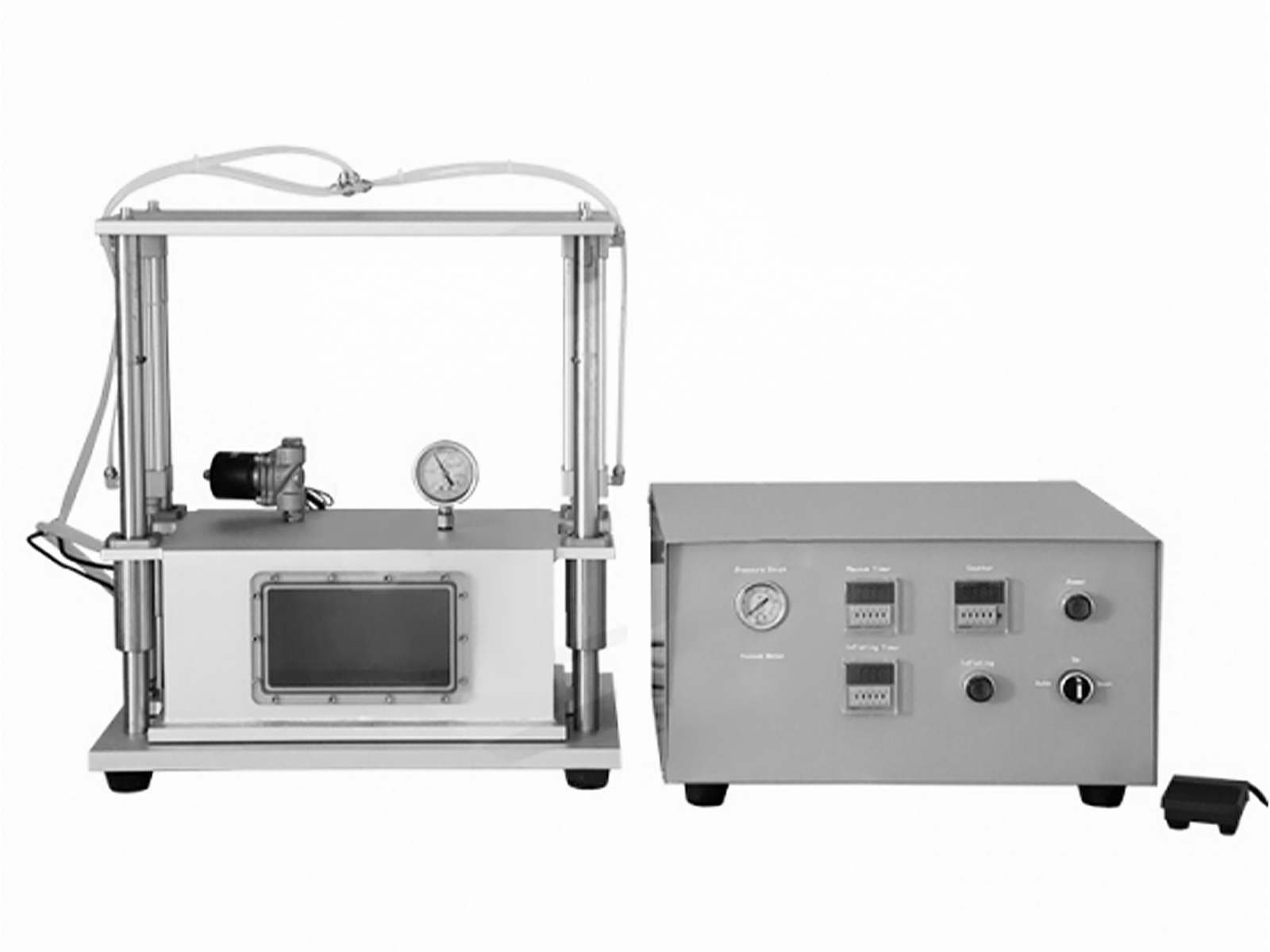

MSE PRO™ Electrolyte Diffusion Chamber for Lithium Ion Battery Research

MSE Supplies electrolyte diffusion chambers specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyte after it’s been injected into the cells or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for both pouch cell and cylinder cell battery. Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.

Customized product design such as all in one diffusion chamber with sealing machine option is available upon request.

Specifications:

Product number (SKU#) BR0438
Power supply 110-240V, single phase 50/60Hz
Max. power 100W
Compress air 0.5-0.8Mpa
Vacuum holding time 0-9999s, adjustable
Vacuum level up to -95kPa (Vacuum pump not included)
Chamber body 12mm thick Aluminum case with observation window
Dimensions Vacuum box: 480x300x450mm
Control unit: 460x220x340mm
Inner chamber size: 326x220x170mm (Customizable)
Vacuum Pump MA0757 Recommended
Net weight About 40kg
Warranty One year limited warranty with lift time support
