Description

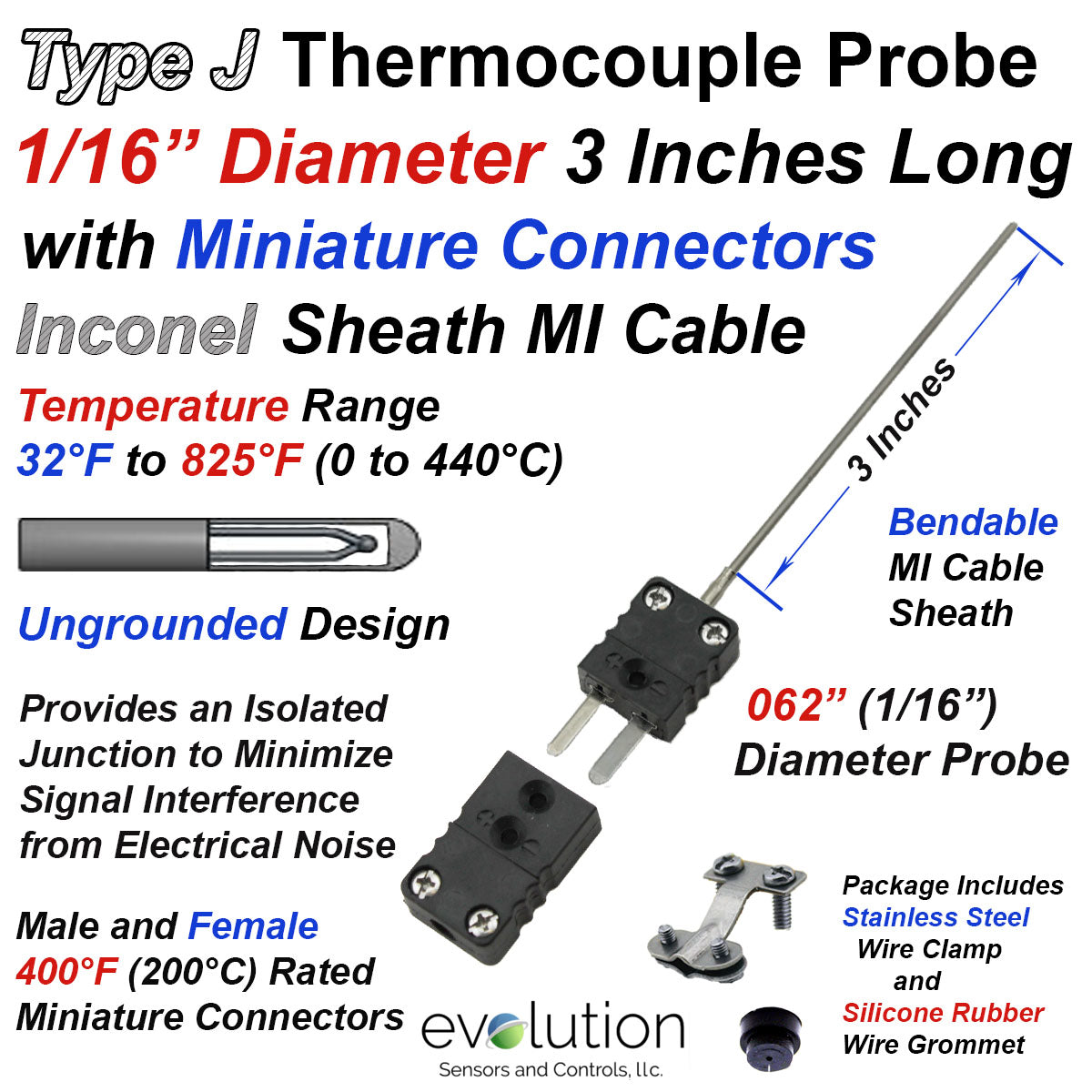

Type J Thermocouple Probe with Miniature Male and Female Connector – 1/16 Inch Diameter 3 Inch Long Inconel Sheath Ungrounded

  • Type J Thermocouple Probe is a 3 inch long 1/16″ diameter Inconel MI Cable probe sheath with an ungrounded thermocouple junction and a miniature male and or male and female connector attached.
    • When the male and female connector combination is selected we also include a strain relief grommet and clamp to attach thermocouple lead wire
  • Temperature Range is 32 to 825°F (0 to 440°C)
  • Inconel MI Cable design provides a Bendable Sheath with highly compacted, high temperature mineral insulation (MgO) ensuring the separation and protection of the internal thermocouple wires.
  • Ungrounded design isolates the internal thermocouple wire junction at the tip and minimizes electrical interference of the thermocouple millivolt signal output.
  • Termination is a Miniature Male and or both Miniature Male and Female Quick Disconnect thermocouple connector. The miniature female connector provides the option to connect thermocouple extension wire to the female and stripped wire ends to the instrumentation. Both connectors are rated to 400°F (200°C).
  • Evosensors part number: J1X-IN60-062-UX-3-MPCX or
    •  J1X-IN60-062-UX-3-MPCF with Male and Female Connector
  • Location: C-6-12

Consider the following Accessories to complete your Connector System
