Type T Thermocouple Glass Braid Insulated with 3 Meters (10 ft) of 30 Gage Wire Leads with Miniature Connector Buy Cheap Recommend

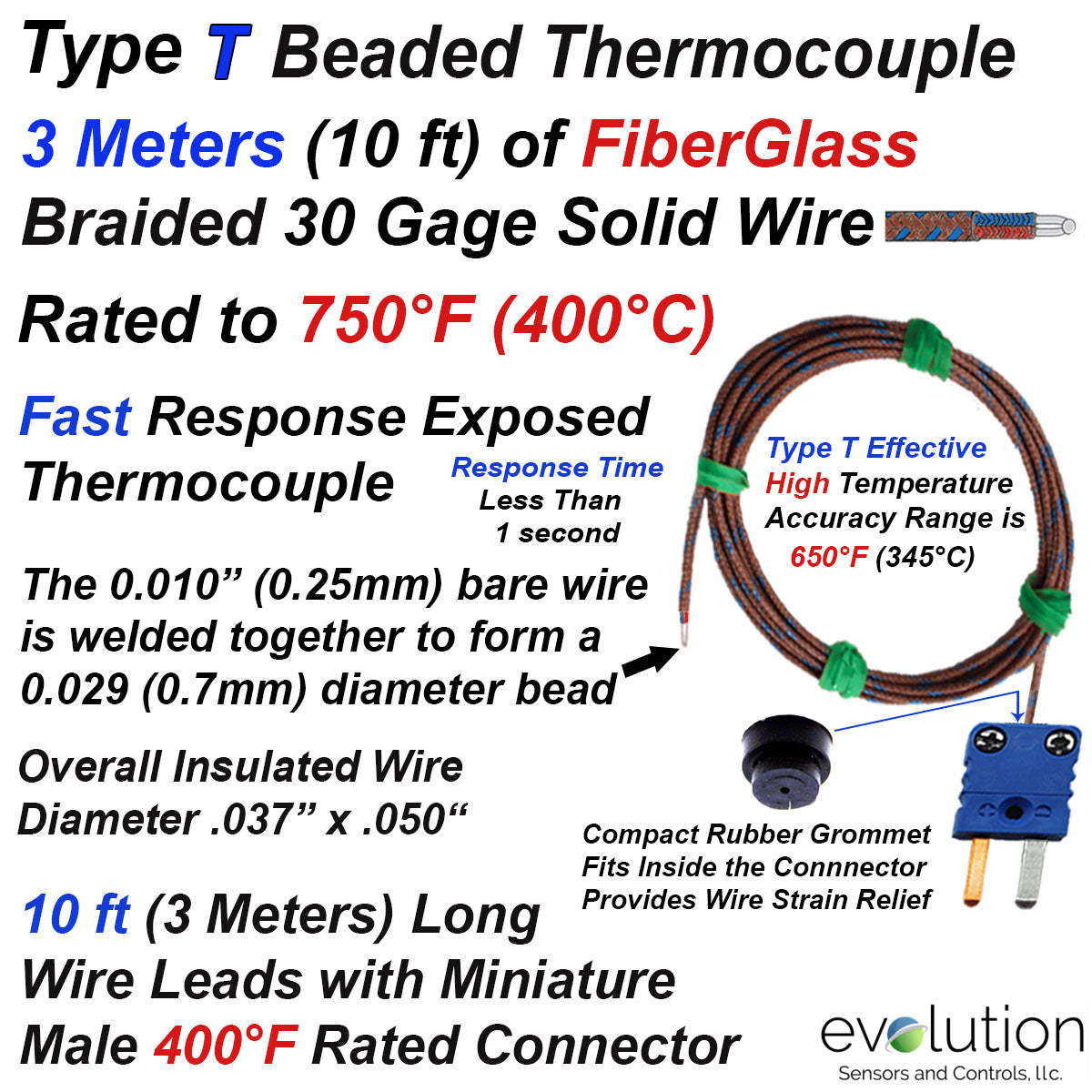

T Type Thermocouple with Fiber Glass Braid Insulation 3 Meters (10 ft) Long 30 Gage Wire Leads with Miniature Connector

• Exposed thermocouple made from Type T High Accuracy SLE Grade thermocouple wire with a miniature male thermocouple connector.
• Temperature Operating range up for Type T thermocouple to 700°F (482 C).
• Miniature Thermocouple bead is 0.029″ (0.7 mm) diameter (approx. thickness of credit card) provides Fast response time of less than 1 second and precise placement.
• Wire Leads – 10 ft (3 meters or 120 inches) fiberglass insulated 30 gage wire with ANSI color code blue positive, red negative and brown jacket with blue trace.
• Wire Construction – solid bare wire 0.010″ (0.25 mm) diameter in a parallel construction with each wire innavidually insulated with fiberglass braid along with a fiberglass outside jacket. Overall diameter is .037″ x .050″.
• Instrument Connection is a miniature male flat pin connector with internal silicone rubber grommet providing wire strain relief.
• EvoSensors Part Number: T1X-WBWX-30G-EX-0.25-FGXX-120-MPCG
