UniLight 5mm Higheff-Led – Green Sale Purchase

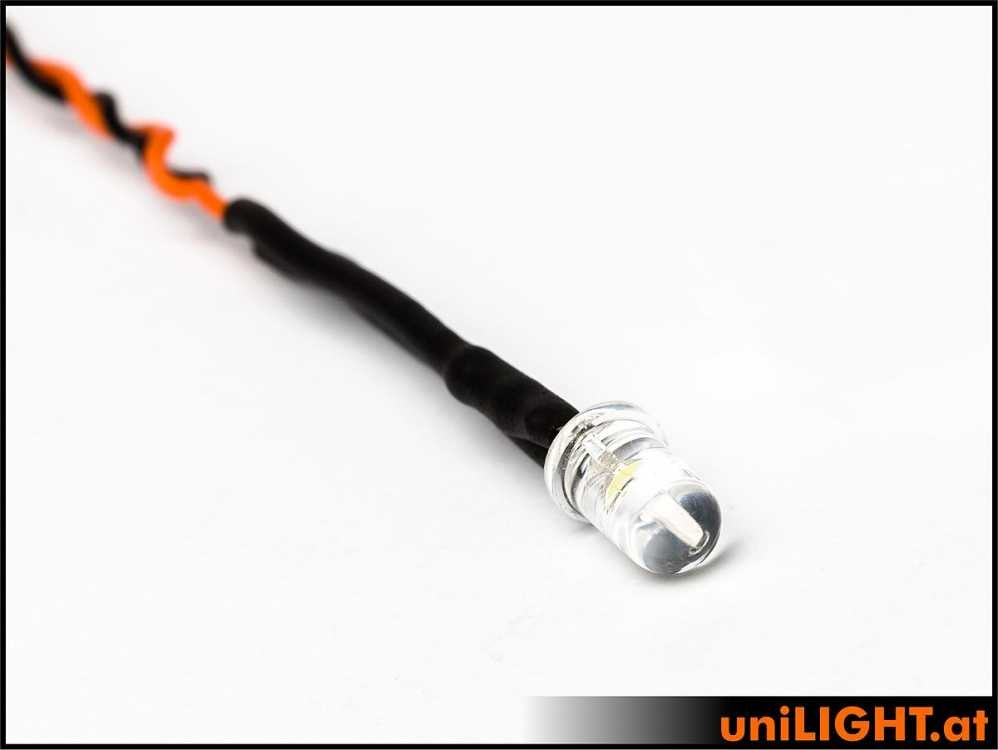

UniLight 5mm HIGH DEFF LED Green POINT-003-GN

High-performance 5mm-LED in RED, GREEN or BLUE

These small LEDs have an enormous luminosity with a relatively wide beam angle and represent today’s highest technical efficiency for these LED types. The luminaire gets hardly hot, it only needs a few milliamperes and it is ideal for use in smaller models like helicopters and styrofoam models (up to about 1m). It’s also suitable for night flights.

Electricity: 0.3W reference power, 6-12V, 0.03A
Beam angle: ~25°
Light intensity: 23000mcd, ca. 3 Lumen RED
Light intensity: 21000mcd, ca. 2 Lumen GREEN
Dimension: D5x10mm (without cable)
Weight: 2g (without cable)

Delivery: 0.5m connection cable included

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!
